IND360 Automation Weighing Indicators – Network-Ready Terminals for Industrial Process
Product Specifications
| Attribute |
Value |
| Product |
Mettler Toledo Indicator |
| Mounting Flexibility |
Panel |
| Voltage |
24 VDC Version |
| Display |
Color TFT screen |
| Dimensions (HxW) |
3.7 in x 6.9 in (94 mm x 175 mm) |
| Protection Rating |
IP20, IP65 |
| Scale Channels |
1 |
| Automation |
Automation Controller |
| Power Supply |
100 - 240 VAC 20 - 28 VDC |
| Display Size |
4.3 in |
| Housing material |
Stainless Steel |
| Application Area |
OEM and System Integrators Tank, Silo, Hopper, and Bin |
| Weighing Platform |
Analog, POWERCELL, Precision, SICS |
| Application |
Blending, Checkweighing, Dosing, Filling, Vehicle Weighing |
| Custom programmable |
No |
| Legal for Trade |
NTEP OIML |
| Interfaces |
Analog Output, CC Link IE, Digital I/O, EtherCAT, EtherNet/IP, Ethernet TCP/IP, Modbus RTU, Modbus TCP, PROFIBUS DP, ProfiNet |
Product Overview

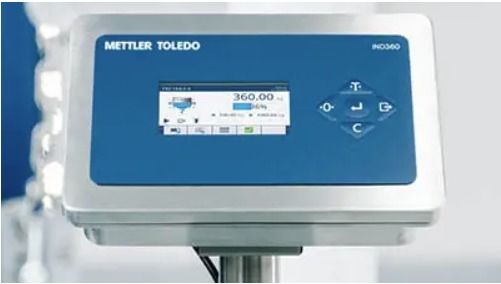

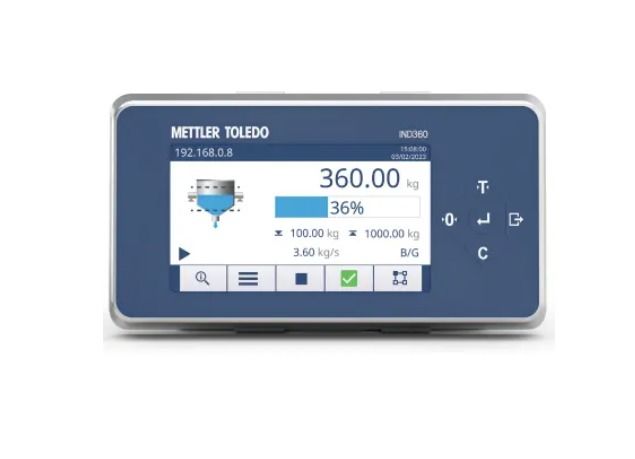

The IND360 Automation Weighing Indicators are high-performance, network-ready terminals designed for industrial automation and process control applications.
Ultra-fast Weight Indicators for Automated Weighing Systems
The IND360 family offers three modules based on the same core technology with global approvals to minimize complexity for machine builders, integrators and end-users when designing customized solutions. The indicator family allows you to reuse existing PLC software for different needs with the optimal housing and interface technology for each project.
Cutting-Edge Performance
Through ultra-fast processing connected to the world's most widely used PLCs, the IND360 weight indicator helps to boost productivity and increase operational uptime. Use the condition monitoring and Smart5™ alarming to ensure your system is performing as expected and to react quickly if issues arise.
IND360 supports:
- Analog Scales
- POWERCELL® Scales
- Precision Scales
- MultiACM
Simplified Integration
IND360 is available with certified automation interfaces, sample programming code, documentation and automation drivers including Rockwell EDS, Siemens GSD, GSDML, Beckhoff ESI and Mitsubishi CSP+. The modern web interface allows for convenient local and remote configuration and service.
OPC UA and JSON REST API enable data exchange with IT systems. These run simultaneously to the PLC (PROFINET or EtherNet/IP) communication. Select from a variety of controller interfaces including PROFINET (S2 redundancy supported), PROFIBUS DP, EtherNet/IP, EtherCAT, CC-Link IE Field Basic and Modbus RTU.
Numerous Applications
The pre-programmed applications for filling/dosing, in-motion weighing and tank weighing save valuable engineering time and are designed to be integrated into an automation system. Benefit from METTLER TOLEDO's weighing expertise to improve process throughput without spending time on custom programming.
Application Features
Tank/Vessel Weighing
Tank/Vessel weighing with full visibility of system status and automatic refill function. LoadAdvisor™ in combination with POWERCELL® offers guided setup saving costs, eliminating errors and improving measurement accuracy.
Fill/Dose Application
The IND360 fill/dose application is a great fit for modular system design and decentralized control. Its pre-programmed application is easily customizable through the web interface, and the application-specific HMI simplifies operation.
Dynamic Weighing
IND360dynamic is designed for in-motion and static weighing on conveying systems including checkweighing. Its advanced filtering capabilities combined with 480Hz processing speed ensuring exceptional weighing results.
Rate Control
IND360rateControl is an innovative application for precise control of loss-in-weight feeders and pumps. It delivers high accuracy by dynamically adjusting feed rates based on real-time weight measurements.
