Name: Industrial Weighing Module SWC515-A SS 15t Durable Stainless Steel Load Cell System
Brand: SMARTWEIGH INSTRUMENT CO.,LTD
SKU: Moduł wagowy SWC515-A SS 15t
Availability: InStock

Dom Produkty

Industrial Weighing Module SWC515-A SS 15t Durable Stainless Steel Load Cell System

Szczegóły Produktu:

Miejsce pochodzenia:	Chiny
Nazwa handlowa:	Mettler Toledo
Numer modelu:	Moduł wagowy SWC515-A SS 15t

Zapłata:

Minimalne zamówienie:	1 SET
Cena:	Zbywalny
Szczegóły pakowania:	pudełko karonowe
Czas dostawy:	10-30 dni
Możliwość Supply:	2000 zestawów miesięcznie

Kontakt

Szczegółowy opis produktu

produkt:	Czujnik tensometryczny Mettler Toledo	Maksymalna pojemność:	33 000 funtów (15 000 kg)
Materiał:	Stal nierdzewna V2A (AISI 304)	metrologia:	NTEP III 5000D OIML C3
Ogniwo obciążeniowe:	12 m kabel SLC611	Dokładność:	Standard
Stopień ochrony:	IP68/69K	Środowisko / materiał:	Mycie / stal nierdzewna
Niebezpieczne zatwierdzenie:	Atex, FM	Krytyczność:	Standard
Podkreślić:	stainless steel weighing module , 15t industrial load cell , durable SWC515-A load cell

Industrial Weighing Module SWC515-A SS 15t Durable Stainless Steel Load Cell System

Key Features:

Maximum Capacity: 33,000 lb (15,000 kg)
Stainless Steel V2A (AISI 304) construction
NTEP III 5,000d OIML C3 metrology certification
IP68/69k protection rating for wash-down environments
ATEX and FM hazardous area approvals
Includes 12 m cable SLC611 load cell

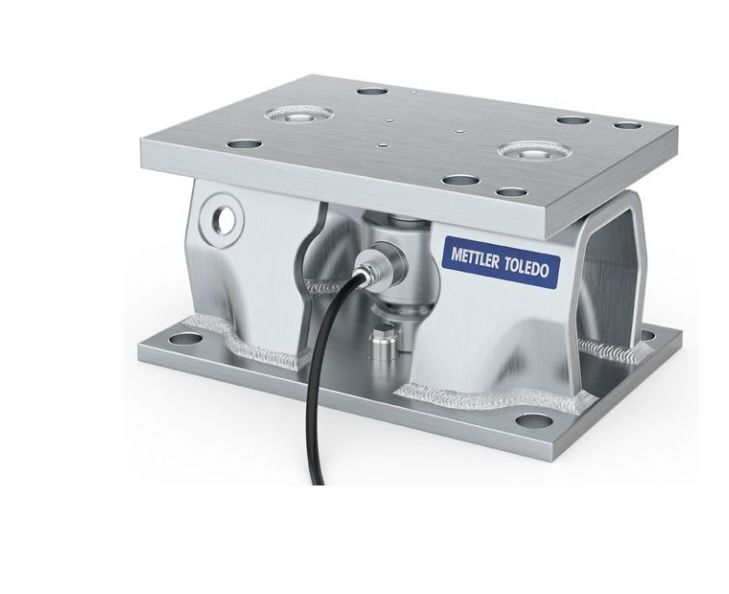

The SWC515-A SS is a compression weigh module designed for industrial applications where its top plate and base plate are compressed when weight is applied. This durable stainless steel system can be directly attached to the ground, piers, or structural beams, making it ideal for large platform scales including truck and railroad track scales, as well as tank, hopper, and silo weighing applications.

Performance Advantages

Multi-Purpose Design

Suitable for both static and dynamic applications including tanks, hoppers, mixers, and conveyors. The high accuracy, fully approved stainless hermetic load cell ensures compatibility with all industrial weighing applications.

Enhanced Safety Features

Includes mechanical safety features such as 360° self-checking, lift-off and down-stops protections. Combined with hazardous area approvals and IP68-rated load cells, this system provides reliable operation in demanding environments.

Easy Installation

Features SafeLock™ plates for fast, straightforward installation without damaging the load cell. The integrated space for hydraulic jack simplifies setup and maintenance.

Technical Specifications

Attribute	Specification
Material	Stainless Steel V2A (AISI 304)
Maximum Capacity	33,000 lb (15,000 kg)
Protection Rating	IP68/IP69k
Environment/Material	Wash-down/Stainless Steel
Hazardous Approval	ATEX, FM
Load Cell	12 m cable SLC611
Accuracy	Standard
Metrology	NTEP III 5,000d OIML C3
