Name: Heavy-Duty SWC615 PM S3A Certified Load Cell Module with 90 Ton SS Construction
Brand: SMARTWEIGH INSTRUMENT CO.,LTD
SKU: Moduł ważenia SWC615 PM SS 90T S3A
Availability: InStock

Dom Produkty

Heavy-Duty SWC615 PM S3A Certified Load Cell Module with 90 Ton SS Construction

Szczegóły Produktu:

Miejsce pochodzenia:	Chiny
Nazwa handlowa:	Mettler Toledo
Numer modelu:	Moduł ważenia SWC615 PM SS 90T S3A

Zapłata:

Minimalne zamówienie:	1 SET
Cena:	Zbywalny
Szczegóły pakowania:	pudełko karonowe
Czas dostawy:	10-30 dni
Możliwość Supply:	2000 zestawów miesięcznie

Kontakt

Szczegółowy opis produktu

produkt:	Czujnik tensometryczny Mettler Toledo	Maksymalna pojemność:	198 000 funtów (90 000 kg)
Materiał:	Stal nierdzewna, klasa 304	metrologia:	OIML C3, NTEP IIIL 10 000
Ogniwo obciążeniowe:	PowerCell PDX	Dokładność:	Standard
Stopień ochrony:	IP68/69K	Środowisko / materiał:	Mycie / stal nierdzewna
Niebezpieczne zatwierdzenie:	Strefa ATEX 2 /22 UL Division 2	Krytyczność:	Monitorowanie stanu
Podkreślić:	90 ton heavy-duty load cell , SWC615 PM S3A load cell , stainless steel load cell module

Heavy-Duty SWC615 PM S3A Certified Load Cell Module with 90 Ton SS Construction

Product Overview

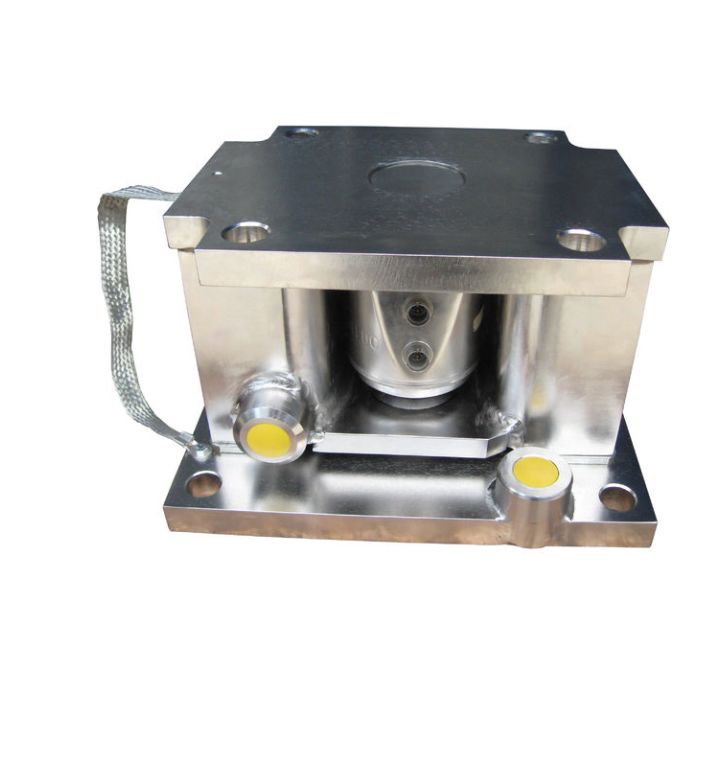

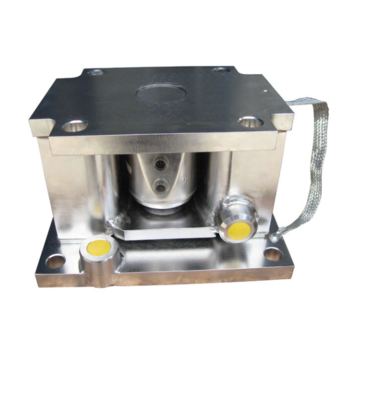

A robust compression weigh module designed for direct attachment to ground, piers, or structural beams. Ideal for large platform scales including truck and railroad track scales, as well as tank, hopper, and silo weighing applications. Capacity ranges from 3 kg to 300 tons.

Key Features

Multi-Purpose Application

Suitable for static & dynamic tanks, hoppers, mixers, and conveyors. Features a high-accuracy, fully approved stainless hermetic load cell for all industrial applications.

Enhanced Safety & Protection

Includes 360° self-checking, dual lift-off & down-stops, ground strap, hazardous area approvals, and IP68-rated stainless steel load cell for maximum reliability.

Predictive Diagnostics

Monitors individual load cells for overload conditions, temperature fluctuations, breach detection, and zero drift to prevent system failures and measurement errors.

Technical Specifications

Material	Stainless steel, grade 304
Material Number	30057237
Maximum Capacity	198,000 lb (90,000 kg)
Protection Rating	IP68/69k
Environment/Material	Wash-down / Stainless Steel
Hazardous Approval	ATEX Zone 2/22, UL Division 2
Load Cell	POWERCELL PDX
Accuracy	Standard
Metrology Certification	OIML C3, NTEP IIIL 10,000
