Name: SWB405 Load Cell Module – 4400kg Capacity, Stainless Steel for Industrial Weighing Systems
Brand: SMARTWEIGH INSTRUMENT CO.,LTD
SKU: Moduł ważenia SWB405 4400 kg 10 m cs
Availability: InStock

Dom Produkty

SWB405 Load Cell Module – 4400kg Capacity, Stainless Steel for Industrial Weighing Systems

Szczegóły Produktu:

Miejsce pochodzenia:	Chiny
Nazwa handlowa:	Mettler Toledo
Numer modelu:	Moduł ważenia SWB405 4400 kg 10 m cs

Zapłata:

Minimalne zamówienie:	1 SET
Cena:	Zbywalny
Szczegóły pakowania:	pudełko karonowe
Czas dostawy:	10-30 dni
Możliwość Supply:	2000 zestawów miesięcznie

Kontakt

Szczegółowy opis produktu

produkt:	Czujnik tensometryczny Mettler Toledo	Maksymalna pojemność:	10 000 funtów (4400 kg)
Materiał:	stal węglowa malowana proszkowo	metrologia:	OIML C3, NTEP III 5M
Ogniwo obciążeniowe:	SLB415	Dokładność:	Standard
Stopień ochrony:	IP68, NEMA 6	Środowisko / materiał:	Stal normalna / węglowa
Niebezpieczne zatwierdzenie:	ATEX, FM	Krytyczność:	Standard
Kabel:	10 m
Podkreślić:	4400kg load cell module , stainless steel load cell , industrial weighing load cell

SWB405 Load Cell Module – 4400kg Capacity, Stainless Steel for Industrial Weighing Systems

Accurate, Reliable, Service-Friendly Weigh Module

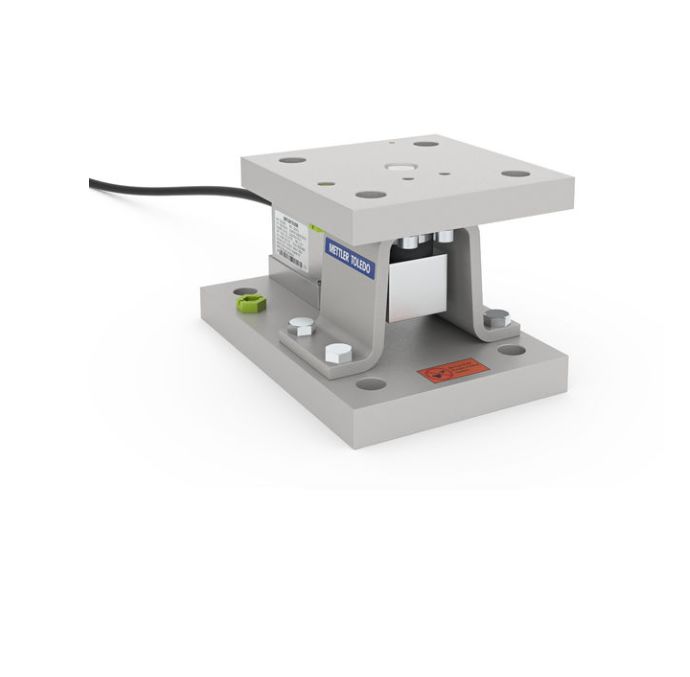

SWB405 MultiMount Carbon Steel 4.4t/10k capacity load cell module designed for industrial weighing applications.

Product Overview

A compression weigh module designed so that its top plate and base plate are squeezed toward each other when weight is applied. Can be attached directly to the ground, piers or structural beams. Typically used in multiples under large platform scales such as truck and railroad track scales, and in tank, hopper and silo weighing.

Key Features

All Safety on Board: Includes anti-uplift protection, 360° checking and down-stop protection for tank weighing safety
Easy Integration: SafeLock™ feature built into SWB405 MultiMount™ weigh modules for easier installation
Reliable Weighing: Hermetically sealed SLB415 load cell with IP68 rating meets most industrial requirements

Technical Specifications

Attribute	Value
Product	Mettler Toledo Load Cell
Maximum Capacity	10,000 lb (4,400 kg)
Material	Powder Coated Carbon Steel
Metrology	OIML C3, NTEP III 5M
Load Cell	SLB415
Accuracy	Standard
Protection Rating	IP68, NEMA 6
Environment/Material	Normal/Carbon Steel
Hazardous Approval	ATEX, FM
Cable	10 m
