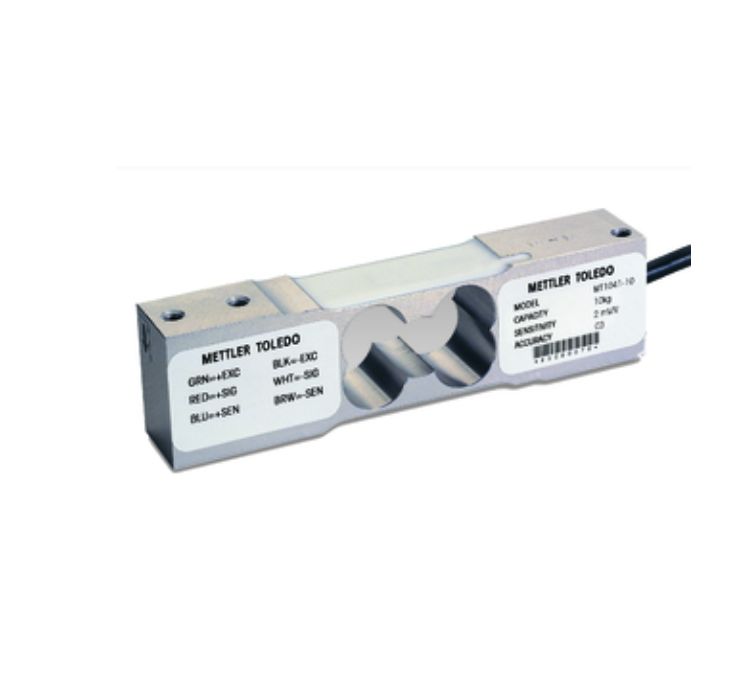

Name: 75kg Load Cell MT1041 with 2m Cable – Precision Weight Sensor for Industrial Use
Brand: SMARTWEIGH INSTRUMENT CO.,LTD
SKU: Komórka obciążenia MT1041-75 kg 2M
Availability: InStock

Dom Produkty

75kg Load Cell MT1041 with 2m Cable – Precision Weight Sensor for Industrial Use

Szczegóły Produktu:

Miejsce pochodzenia:	Chiny
Nazwa handlowa:	Mettler Toledo
Numer modelu:	Komórka obciążenia MT1041-75 kg 2M

Zapłata:

Minimalne zamówienie:	1 SET
Cena:	Zbywalny
Szczegóły pakowania:	pudełko karonowe
Czas dostawy:	10-30 dni
Możliwość Supply:	2000 zestawów miesięcznie

Kontakt

Szczegółowy opis produktu

produkt:	Czujnik tensometryczny Mettler Toledo	Maksymalna pojemność:	167 funtów (75 kg)
Materiał:	Aluminium, pasywowane	metrologia:	NTEP III 5000D OIML C3
Dokładność:	Standard	Stopień ochrony:	IP67
Rozmiar platformy (LXW):	400 mm x 400 mm	Łączność:	Analog
Kabel:	6,6 stóp (2 m)
Podkreślić:	75kg load cell with 2m cable , precision weight sensor for industrial use , Mettler Toledo load cell with warranty

75kg Load Cell MT1041 with 2m Cable – Precision Weight Sensor for Industrial Use

Key Features

High-performance single point load cell with off-center compensation
Aluminum construction with passivated finish for durability
IP67 protection rating for harsh environments
Includes 2m (6.6ft) PVC cable for connectivity
ATEX Zone 1/21/2/22 approvals for hazardous areas
Metrology approvals: NTEP III 5,000d and OIML C3

Product Description

The MT1041 compression weigh module is designed for industrial weighing applications where its top plate and base plate are compressed when weight is applied. This robust load cell can be directly attached to the ground, piers, or structural beams, making it ideal for platform scales, tank weighing, hoppers, and silos.

Technical Specifications

Maximum Capacity	167 lb (75 kg)
Material	Aluminum, passivated
Material Number	71201837
Protection Rating	IP67
Platform Size (LxW)	400 mm x 400 mm
Connectivity	Analog
Cable	6.6 ft (2 m) PVC
Accuracy	Standard
Metrology Approvals	NTEP III 5,000d, OIML C3

Industrial Applications

This precision load cell is specifically designed for mid-size platforms in industrial environments. Its robust construction and metrology approvals make it suitable for:

Truck and railroad track scales
Tank, hopper, and silo weighing systems
Industrial process control applications
Hazardous area installations (ATEX certified)
